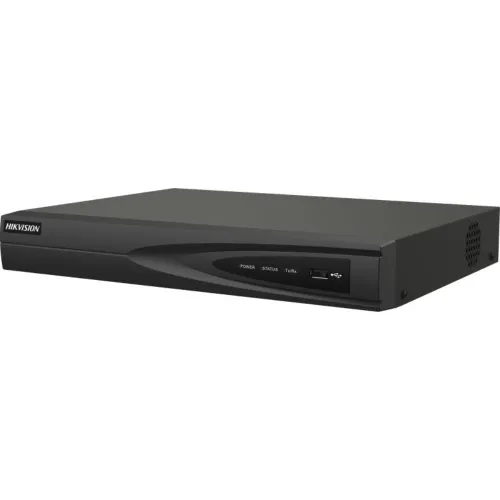

Hikvision DS-7604NI-Q1 4 Channel 4K NVR

Original price was: 7,150.00৳ .Current price is: 6,450.00৳ .

Key Features

Model: DS-7604NI-Q1
IP Camera Input: Up to 4-channel
Video Format: H.265+/H.265/H.264+/H.264
Incoming Bandwidth: Up to 40 Mbps
Storage Capacity: Up to 8TB, 1x SATA Interface

Categories: Hikvision, NVR, Security

Description
Reviews (0)

Specification

Audio and Video
IP Camera Input	4-ch
Two-Way Talk	1-ch RCA (2.0 Vp-p, 1 k Ω)
Display
Interface	HDMI/VGA simultaneous output
Resolution	HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output 19201080/60Hz，12801024/60Hz，1280720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 19201080/60Hz，12801024/60Hz，1280720/60Hz; HDMI/VGA simultaneous output
Decoding Capacity	1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels
Recording
Compression	H.265+,H.265,H.264+,H.264
Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Video Detection And Alarm
Video Detection	1-ch;4-ch
Network
Ethernet Port	1x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Storage
Internal HDD	1 SATA interface
HDD Mode	Up to 8 TB capacity
Auxiliary Interface
USB	2 x USB 2.0
Power
Power Supply	12 VDC, 1.5 A
Power Consumption	≤ 10 W (without HDD)
Component Environment
Operational Conditions	-10 °C to 55 °C (14 °F to 131 °F)
Construction
Dimensions	315.0 x 240.0 x 48.0 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Net Weight	1 kg (without HDD, 2.2 lb.)
Warranty
Manufacturing Warranty	1-year

Description

Hikvision DS-7604NI-Q1 4 Channel 4K NVR

The Hikvision DS-7604NI-Q1 4 Channel 4K NVR is a comprehensive surveillance solution that can support up to four IP camera inputs and different video formats, including H.265+, H.265, H.264+, H.264. Capable of decoding up to 1-ch@8 MP, 3-ch@4 MP, and 6-ch@1080p, it guarantees effective handling of high-definition video. With an incoming bandwidth of 40 Mbps and an outgoing bandwidth of 80 Mbps, the Hikvision DS-7604NI-Q1 4 Channel 4K NVR allows for seamless data transmission. With simultaneous output capability for both HDMI and VGA, users can choose from a variety of display options at up to 4K (3840 × 2160)/30Hz resolution. For improved surveillance, it also has two-way audio capability and audio output. The Hikvision NVR can record at several resolutions, from 8 MP to CIF, and can play back up to 4 channels simultaneously. It has a strong network interface that can connect up to 32 users remotely and is compatible with a variety of network protocols. The DS-7604NI-Q1 is a great alternative for professional surveillance applications since it has two USB 2.0 interfaces and one SATA interface that can support up to 8 TB of capacity per disk. This combination of features makes it a versatile storage and connection solution.
