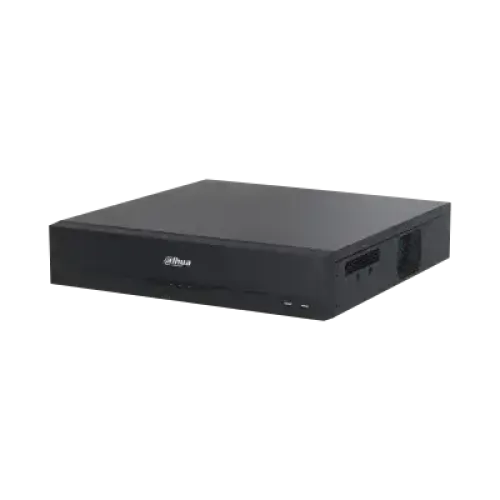

Dahua NVR5864-EI 64 Channels NVR

Original price was: 83,000.00৳ .Current price is: 75,400.00৳ .

Key Features

Model: NVR5864-EI
Number of Channels: 64
Main Processor: Industrial-grade Processor
Max. Decoding: 32×1080p 30 Fps, 32×2mp 30 Fps
Features: Face Detection, Heat Map, and People Counting

Categories: Dahua, NVR, Security

Description
Reviews (0)

Specification

System
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Display
Interface	1x eSATA 1x RS-232 2x RS-485 2x HDMI 2x VGA 2x Network Port 4x USB 8x SATA
Resolution	32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding Capacity	AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps
Multi-Screen Display	Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16
Recording
Compression	Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression: G.711a; G.711u; PCM; G726
Playback And Backup
Playback Function	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode	USB device and network
Network
Smart Phone	iOS; Android
Power
Power Supply	100–240 VAC, 50-60 Hz
Power Consumption	Total output of NVR is ≤ 13 W (without HDD)
Construction
Dimensions	439.9 mm × 457.9 mm x 89.0 mm (17.32″ × 18.03″ × 3.50″) (W ×D × H)
Net Weight	6.4 kg (14.11 lb)
Gross Weight	9.01 kg (19.86 lb)
Warranty
Manufacturing Warranty	1 Year

Description

Dahua NVR5864-EI 64 Channels NVR

The Dahua NVR5864-EI NVR is a high-performance network video recorder built for sophisticated surveillance systems. It runs an embedded Linux operating system and has web and local GUI interfaces for ease of use. Face detection, face recognition, perimeter security, and SMD Plus are among the AI features included in the NVR’s recorder and camera. It supports up to 20 face databases with 20,000 photos and can assess gender, age group, glasses, emotions, face masks, and beard features. Secondary filtering is provided by SMD Plus technology for person and motor vehicle detection, reducing false alarms due to ambient influences. The Dahua NVR5864-EI NVR supports up to 8 ANPR channels for vehicle license plate comparison and includes block listing and allow listing features. The Dahua NVR provides wide surveillance coverage with 64 access channels and supports a variety of network bandwidths based on AI usage. It has a broad variety of resolutions and video output via two VGA and two HDMI connectors. It allows third-party camera access via protocols such as ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, and Samsung, boosting compatibility with different camera systems. The NVR offers up to 16 simultaneous playback channels and a variety of recording modes, including general, motion detection, intelligent, alert, and POS. For data redundancy and large storage capacity, it offers a disk group and RAID setups. The Dahua NVR5864-EI NVR features several audio and video connections and can operate in a wide temperature range with high humidity.
